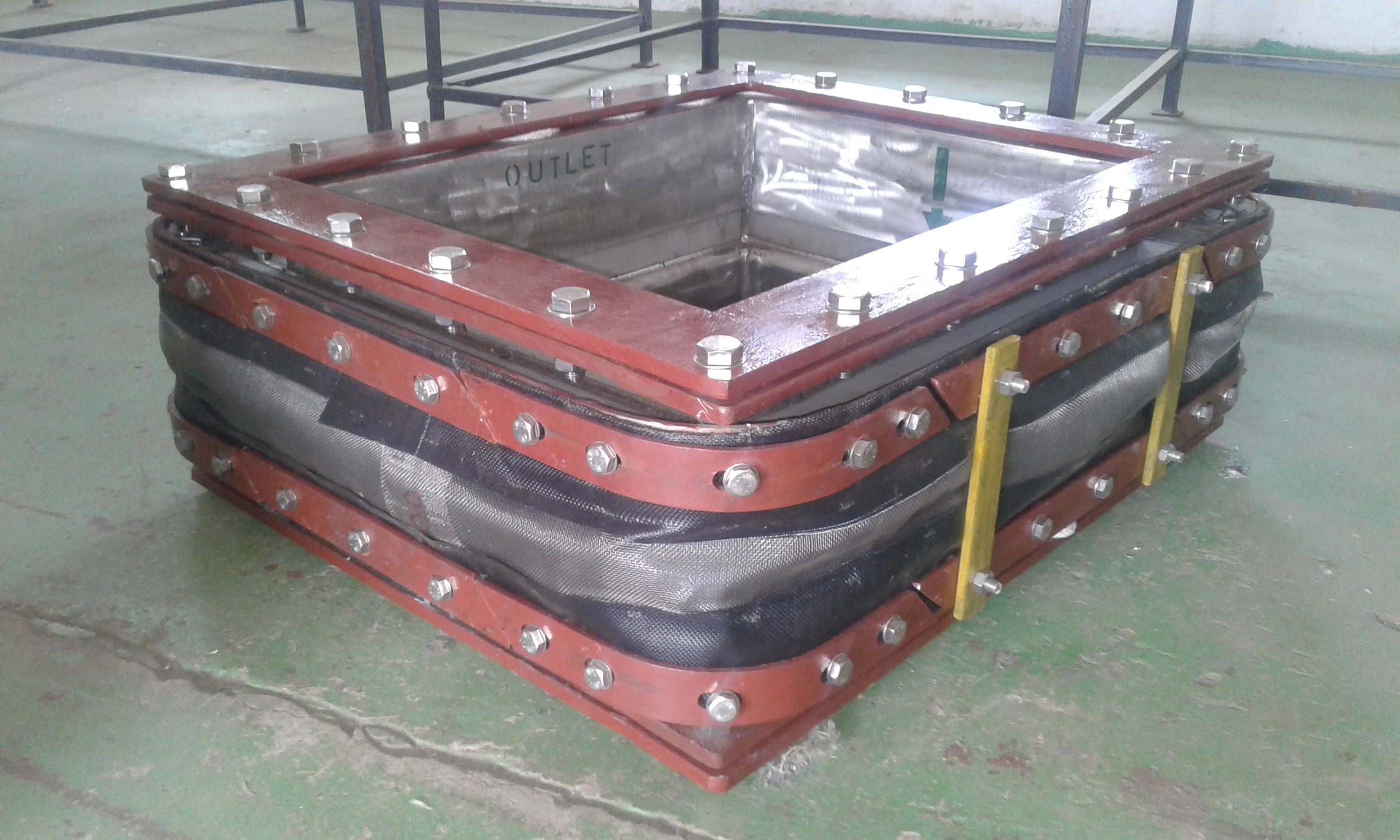

Non Metallic Flexible Expansion Joints

Non Metallic Flexible Expansion Joints play a vital role in various process industries were Flue Gas, hot air, hot Gas is the medium. They are used for the following purposes.

> To accommodate thermal Expansion of the ducts due to temperature

> To accommodate minor duct misalignments and plant settle,

> To prevent any vibration getting transferred to the duct from the rotating/vibrating equipments

Technical Specification:

At Alta Vista, various factors like temperature, pressure, Nature of Medium, Direction of flow, External Ambient temperature, Thermal movements / Vibration values, Dust concentration and other specific Inputs are analysed and appropriate Non Metallic Flexible Expansion Joints are designed to suit all the above parameters. We have developed multilayer fabric flexible expansion joint specially designed to meet the requirements of the applications.

Greater Flexibility:

• Axial movement of up to 175 and lateral movement of up to ±80mm are standard.. Mechanical protection against abrasion for inner sleeve arrangement.
• The temperatures ranging from 50 ºC up to 1200 ºC.
• Options of hot, cold duct designs are possible.
• Choice of materials and composition.
• Fastening or Clamp tightening method.
• Steel frame and quality steel parts.
• Packed Insulation Bolster.
• Design capability to meet any non standard requirements of the customer.

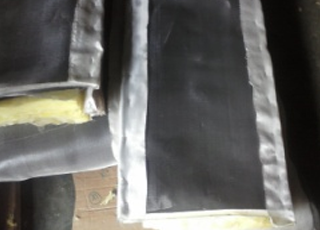

Replacement and Spare Fabrics

At Alta Vista, we supply all kinds of Fabrics and Insulation pillow for any kind of damaged / worn out Non Metallic Expansion Joints at site. In addition to the process parameter and dimension, we also consider duct misalignments and plant settling in the present system and supply a product which is suitable to install.

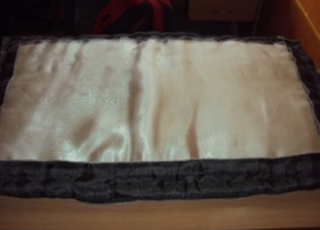

Kiln Inner & Outer Lamella Seals and Lamella Plates

At our workshop we can manufacture and supply kiln sealing cloth and Curtain which is widely used to prevent any false air entry in to the kiln.  We can supply the same for kilns of various diameters. The combination of layers offered is suitable to. Withstand kiln temperature up 1400 Deg C. We also supply the kiln retaining plates made of spring steel and Outlet wearing seal segments to ensure proper positioning and stiffness of the lamella seal. They are made according to the fitting arrangement at site

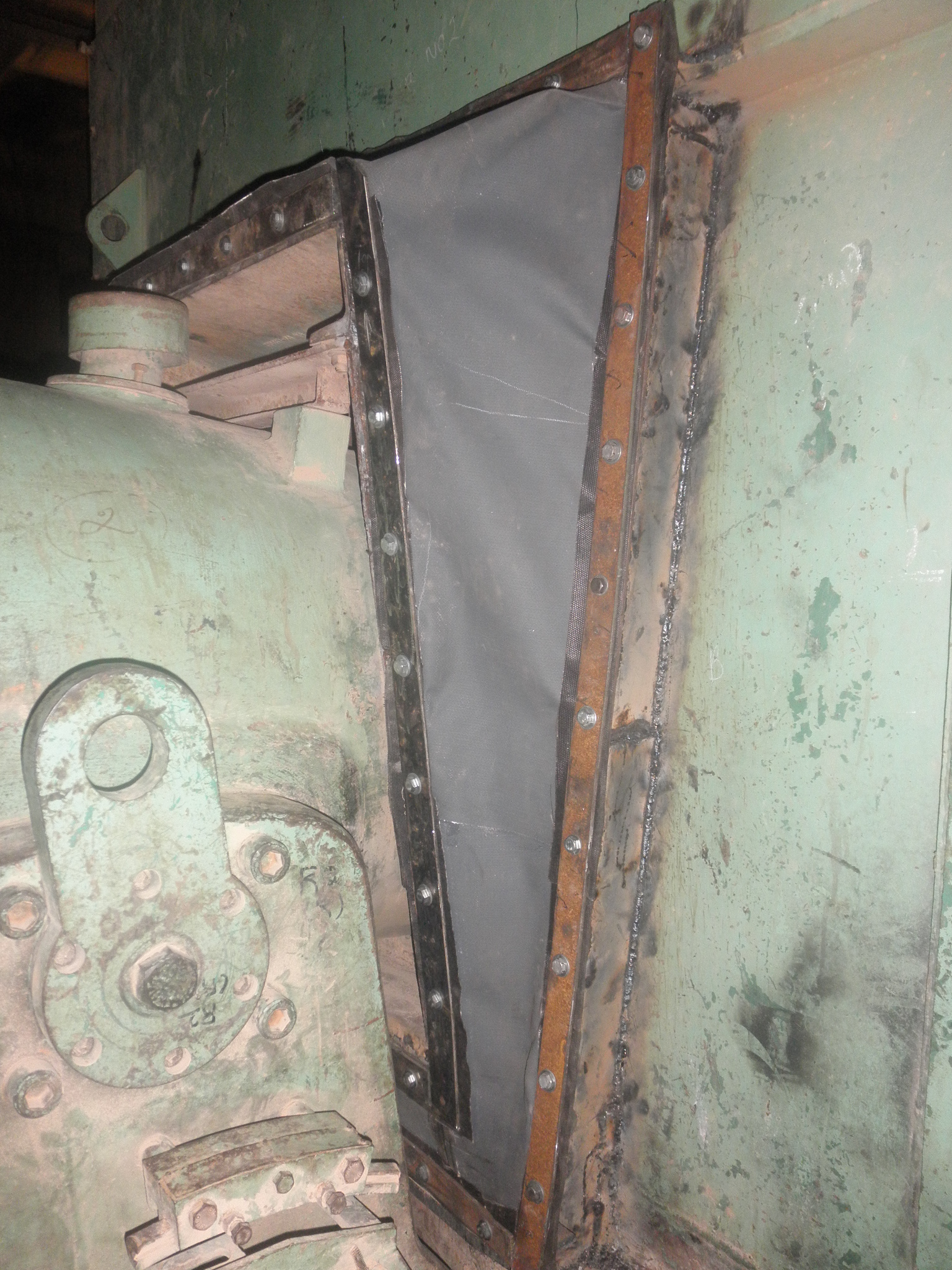

Rocker Arm ( Reverse Air ) Seal Joint and Chute

Alta Vista recommended two options to reduce energy loss from false air / vacuum leak. The installation of Non Metallic Expansion Mil seal joint between the mil roller and mill casing and avoided false air leak.  However, the exact investment costs could not be quantified because the mechanical seal was designed and produced in-house and the leak survey and repair was conducted by regular staff with the assistance of Alta Vista.

Advantages We Offer

> Ready stock of various types of Fabrics to ensure minimum lead time

> In house steel Fabrication which ensure 100% control on timely delivery and quality

> Quick response in terms of documentation / service requirements

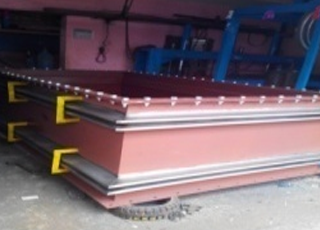

Metallic Expansion Joint and Bellows

The bellows and expansion joints can be tailor made to meet specific requirements of the customer within the available product range. Metallic Bellows expansion joints are designed as per EJMA standard. Bellows expansion joints are employed in piping systems to absorb differential thermal expansion while containing the system pressure. They are being used in Refineries, Chemical plants, Nuclear Power System, Heating and Cooling system etc.

Type of Expansion Joints

    > Single Expansion Joints
    > Single Tied Expansion Joints
    > Hinged Expansion Joints
    > In - Line Pressure Balanced Expansion Joints
    > Gimbals Expansion Joints
    > Universal Expansion Joints
    > Pressure Balanced Expansion Joints

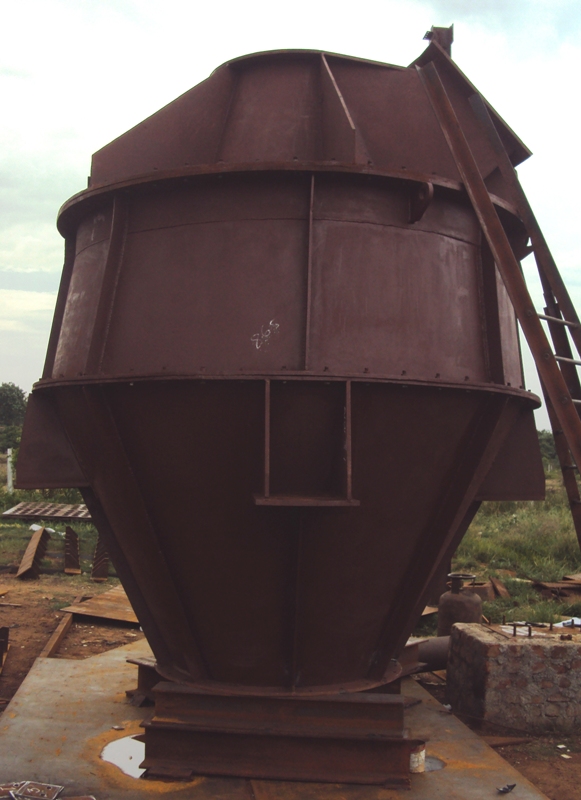

General Fabrication

We are specialized in Mild steel, Stainless steel, Hardox and spring steel fabrication and have successfully carried out fabrication of structural items, machinery and other process equipments. Some of the products we have fabricated are Dampers, Metallic Expansion Joints, Cement silos, Immersion tubes, Classifiers, Cooler casings, Batching plant housing, Bag Filter and ESP casings, Kiln Hoods, Grizzley bar assembly, Fly ash handling assembly, etc,

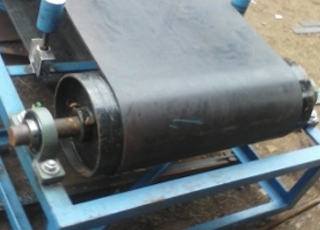

Belt Conveyors , Air Slide Fabric & Industrial Filter Bags

Belt Conveyors can be used to convey practically any type of solids. The belt Conveyors which we manufacture are modular in construction. We manufacture modules in length of 2500 MM to 10mtrs, Leg-supports are bolted to the frames. Working widths will range from 50 MM to 1500 MM, depending upon the application.

Application - Light & Medium Duty

Optional Attachments - For inclined applications, belt Conveyors can be supplied with cleats & side walls. Heights of cleats & side walls are designed as per capacity & the application.

There are typically 2 types of construction for these belt Conveyors : Roller bed belt Conveyors & Slider bed belt Conveyors.
